Mantova shelving systems are designed for commercial cool rooms, freezers, dry stores, and supermarkets across Australia. Browse the full range of Mantova shelving configurations including M-Span polymer shelving with HACCP approval and a 20-year non-corrosion warranty, Real Tuff post style systems, wire shelving, Top Track Compactus, and dunnage shelving. Marko Stainless & Aluminium supplies the complete Mantova line with expert advice to match the right system to your storage requirements.
Mantova manufactures several distinct shelving systems, each suited to different commercial storage environments. The table below summarises the core options to help you identify the right fit before reading the detail sections.
System | Primary Use | Key Feature | HACCP Approved |
M-Span | Cool rooms, freezers, dry stores | 20-year non-corrosion warranty, polymer shelf | Yes |
Real Tuff | Post style general storage | Removable shelves, 250 kg per tier | Yes |
Wire Grid | Cool rooms, general commercial | Open grid airflow; stainless or zinc finish | Yes |
Top Track Compactus | High-density storage | Sliding track system | Confirm by configuration |
Wire Wall Shelving | Wall-mounted storage | Space-saving wall fixing | Confirm by configuration |
Project Shelving | Post style custom layouts | Flexible configuration | Confirm by configuration |
Dunnage Shelving | Floor-level heavy loading | 25 mm x 25 mm x 1.6 mm square tube frame | Confirm by configuration |
Supermarket Shelving | Retail display | Purpose-built for retail environments | Confirm by configuration |
M-Span is Mantova’s flagship shelving system for temperature-controlled and dry storage environments. Its open-hole shelf surface promotes airflow around stored products and is designed for cool rooms, freezers and dry stores.
Shelf widths: 310 mm, 460 mm, and 610 mm
Shelf lengths: 600, 750, 900, 1050, 1200, 1350, and 1500 mm
Standard tier configurations:
Posts are available in 304 Grade Stainless Steel or Galvanised Steel. Both options carry a 12-month structural warranty against manufacturing defects. Choose stainless steel posts for environments with regular wet cleaning or sanitiser exposure; galvanised posts suit drier storage areas.
M-Span shelving is rated for use from -30°C to +90°C, making it suitable for blast freezers, standard cool rooms, and ambient dry stores within the same system.
Mantova states that the M-Span manufacturing process reduces the energy required to produce each shelf. All parts of the M-Span shelf are recyclable at end of life.

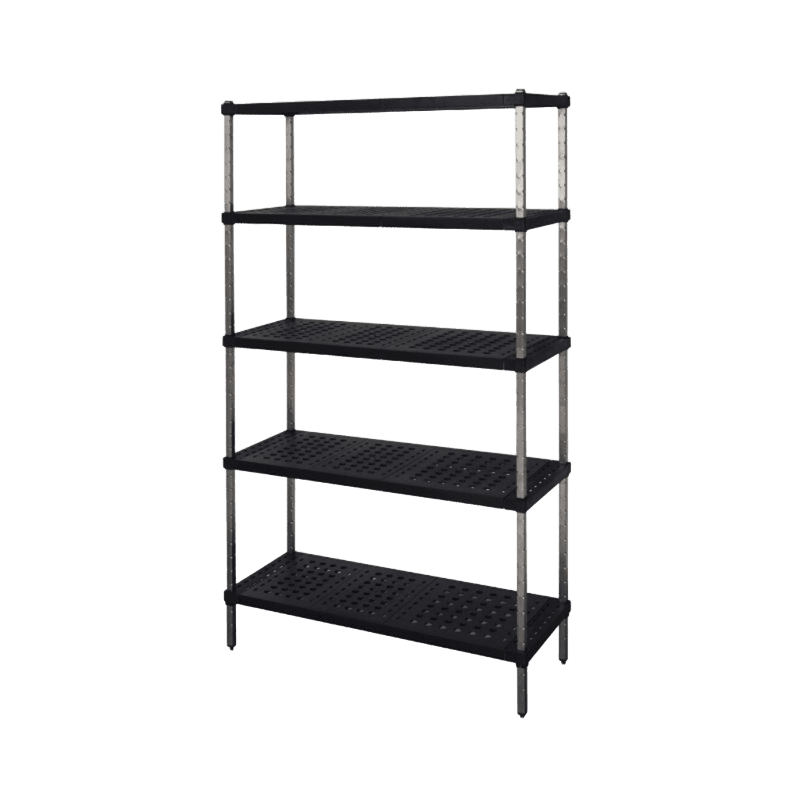

Real Tuff is HACCP approved and uses removable moulded shelves with LIFE Antimicrobial Protection. Shelf widths are 300, 450, 525 and 600 mm, with lengths from 600 to 1800 mm. Shelves are rated to 250 kg evenly distributed per tier. Frames are available in stainless steel or ALL GAL galvanised finish, and all components carry a 12-month warranty.

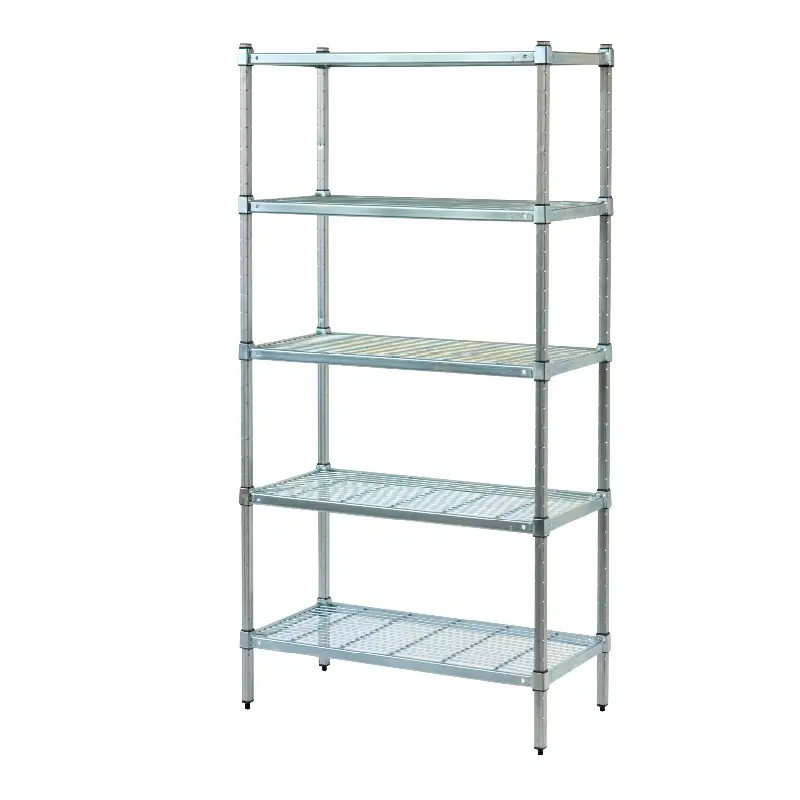

Wire grid shelving is HACCP Australia approved, making it a compliant choice for food service environments where hygiene audit requirements apply. The open grid construction allows air and liquid to pass through freely, reducing cleaning time and supporting cool room airflow.
Available widths: 300, 450, 525, and 600 mm
Finish options: Zinc with clear lacquer or polished stainless steel
Wire grid shelving is available in both post style (free-standing) and wall-mounted configurations.
Wire wall shelving fixes directly to wall surfaces, freeing floor space in compact cool rooms, preparation areas, and storage rooms. Contact Marko Stainless & Aluminium for bracket options and load ratings for wall-mounted configurations.
Top Track Compactus shelving uses a sliding track system to increase storage density in areas where floor space is limited. Bays slide along an overhead track, eliminating fixed aisles between every unit. This system is particularly suited to high-volume cool rooms and dry stores where maximising usable cubic space is a priority.
Project shelving provides a flexible post style configuration for commercial fitouts with non-standard dimensions or mixed product types. Contact Marko Stainless & Aluminium to discuss bay widths and tier spacing for project-specific applications.
Dunnage shelving is manufactured from 25 mm x 25 mm x 1.6 mm square tube and is designed for floor-level storage. Available lengths are 600, 750, 900, 1050, 1200, 1350, 1500, 1650 and 1800 mm. It helps keep stored products elevated from the floor.

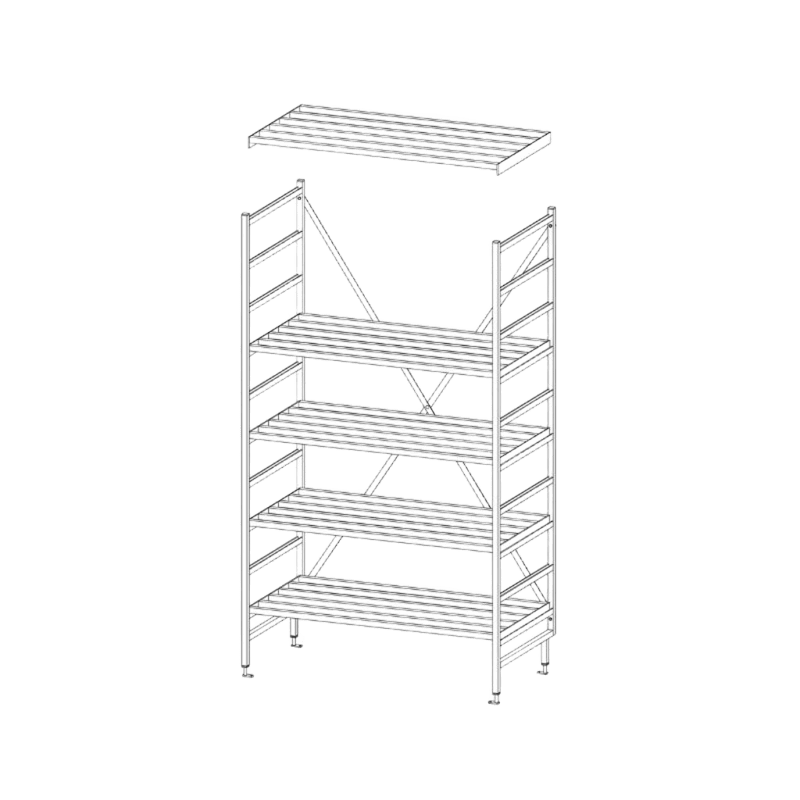

Mantova’s supermarket shelving range is purpose-built for retail display environments. Contact Marko Stainless & Aluminium for current configurations, dimensions, and pricing.
Shelf Length | Load Rating Per Tier | Shelf Clip Rating |
Up to 1200 mm | 200 kg evenly distributed | 150 kg |
1350 mm | 150 kg evenly distributed | 100 kg |
1500 mm | 150 kg evenly distributed | 100 kg |
Loads must be evenly distributed across the full shelf surface. Point loading or concentrated weight may reduce the safe working load.
Component | Warranty |
M-Span Shelf (non-corrosion) | 20 years |
M-Span Shelf (structural, manufacturing defects) | 12 months |
Stainless Steel Posts (structural, manufacturing defects) | 12 months |
Galvanised Posts (structural, manufacturing defects) | 12 months |
Mantova shelving is available to order through Marko Stainless & Aluminium. Pricing varies by system, shelf size, post material, and quantity. To receive a current price for your specific configuration, contact the Marko Stainless & Aluminium team directly.
Request a Quote: Call +61 2 4956 8968 or use the enquiry form on this site to describe your shelving requirements, preferred post material, number of tiers and shelf dimensions. The team can confirm stock availability and lead times at the time of enquiry.
Mantova shelving components include long shelf lengths and upright posts that are classified as bulky freight. Delivery options, carrier services, and lead times depend on your location and the system you order.
Contact Marko Stainless & Aluminium before purchasing to confirm:
Delivery options, freight, lead times and stock availability are confirmed when quoting or ordering and may vary by location and configuration. Any return request is assessed under the applicable terms and product warranty.
Yes. Mantova M-Span shelving is HACCP Australia approved and incorporates LIFE Antimicrobial Protection. It is designed for cool rooms, freezers and dry stores.
M-Span shelves up to 1200 mm long are rated to 200 kg per tier when the load is evenly distributed. Shelves in the 1350 mm and 1500 mm lengths are rated to 150 kg per tier, evenly distributed. Shelf clips are rated to 150 kg for shelves up to 1200 mm and 100 kg for the 1350 mm and 1500 mm sizes.
M-Span shelves carry a 20-year non-corrosion warranty and a 12-month structural warranty against manufacturing defects. Stainless steel and galvanised post options each carry a 12-month structural warranty against manufacturing defects.
M-Span shelves are available in widths of 310 mm, 460 mm and 610 mm. Lengths are 600, 750, 900, 1050, 1200, 1350 and 1500 mm. Standard unit heights are 1200 mm (3 tiers), 1800 mm (4 tiers) and 2000 mm (5 tiers).
Yes. M-Span shelving is rated from -30°C to +90°C, covering blast freezer, standard cool room, and dry store temperatures. The open-hole shelf surface promotes airflow, which supports consistent temperature distribution around stored product.
To place an order, request a quote or check stock availability for any Mantova system, call +61 2 4956 8968. For businesses fitting out a complete commercial kitchen or food preparation facility, Marko Stainless & Aluminium also supplies commercial stainless steel benches and a wide range of fabricated stainless steel equipment to complement your shelving installation.
